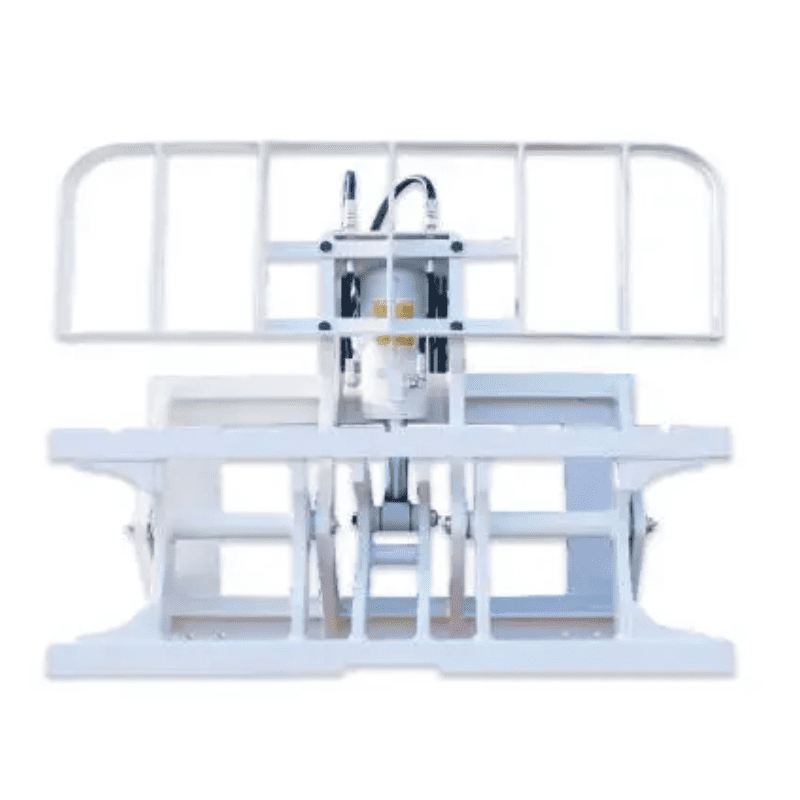

1-4.5 Ton Single-Cylinder Hinged Fork

1-4.5 Ton Single-Cylinder Hinged Fork

Enquire Rental

The Heli 1-4.5t Single-Cylinder Hinged Fork Attachment is a masterclass in practical engineering innovation. It addresses a critical gap in material handling by providing dynamic articulation where rigidity is a limitation.

Enquiry
Category: Tag:

1-4.5 Ton Single-Cylinder Hinged Fork

Single-Cylinder Hinged Fork is a specialized, versatile attachment engineered to dramatically extend the functionality and efficiency of standard forklifts in the 1 to 4.5-ton range. This innovative solution transforms a rigid forklift carriage into a dynamic, articulated system capable of handling uneven, unstable, or uniquely-shaped loads with remarkable stability and control. By enabling the independent tilting of each fork arm, it solves fundamental challenges in material handling that conventional forks cannot address, making it indispensable for industries dealing with rolls, barrels, irregular pallets, and loose materials.

Technical Parameters

Parameter QF20F-A1
2000kg @ 500mm • Class II		 QF20F-A2
2000kg @ 500mm • Class II		 QF30F-B1
3000kg @ 500mm • Class III
Capacity @ Load Center 2000 kg @ 500 mm 2000 kg @ 500 mm 3000 kg @ 500 mm
Catalog Order NO. QF20F-A1 QF20F-A2 QF30F-B1
Mounting Class II II III
The goods fork class III II III
Cylinder number Single Single Single
Carringe Width (A) 1100 mm 1040 mm 1100 mm
Carringe Height (B) 506 mm 407 mm 506 mm
Overall Height 1132 mm 1132 mm 1132 mm
Tilt Forward / Tilt Backward 45° / 25° 45° / 25° 45° / 25°
Effective Thickness (ET) 375 mm 375 mm 375 mm
Horizontal Center of Gravity (HCG) 165 mm 165 mm 165 mm
Weight 315 kg 295 kg 305 kg
Available Forklift 1-2.5t 1-2.5t 3-4.5t

Related products

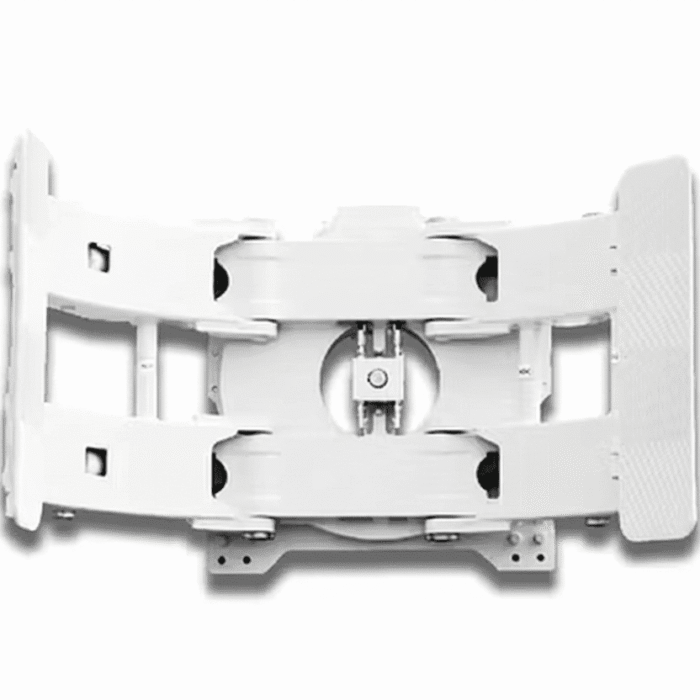

  • 3-4.5 Ton Paper Roll Clamp with 360 Degree Rotation
