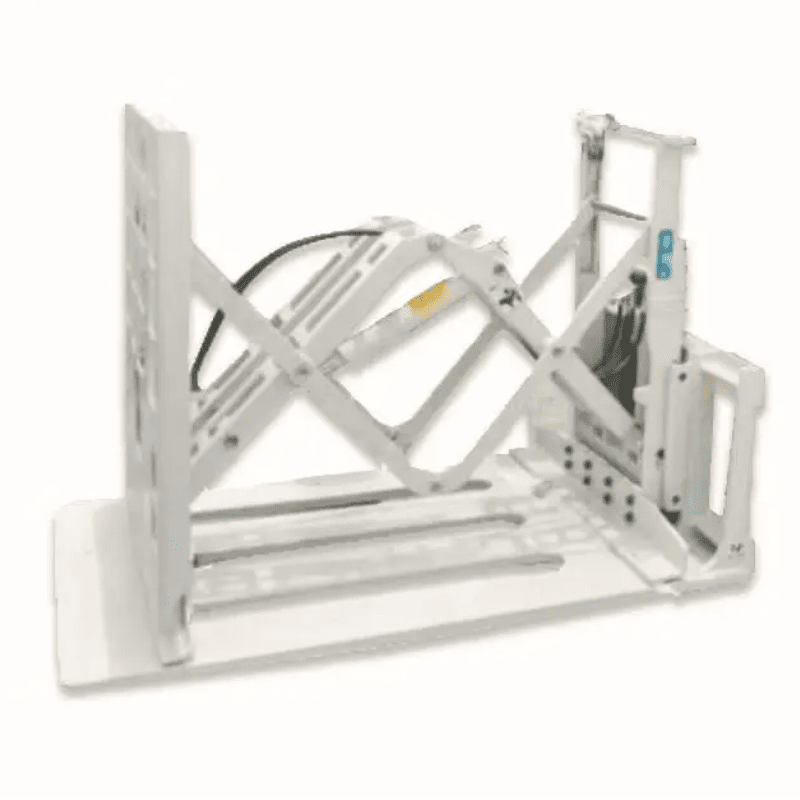

1-4.5t Integral Fork Plate Push Pulls

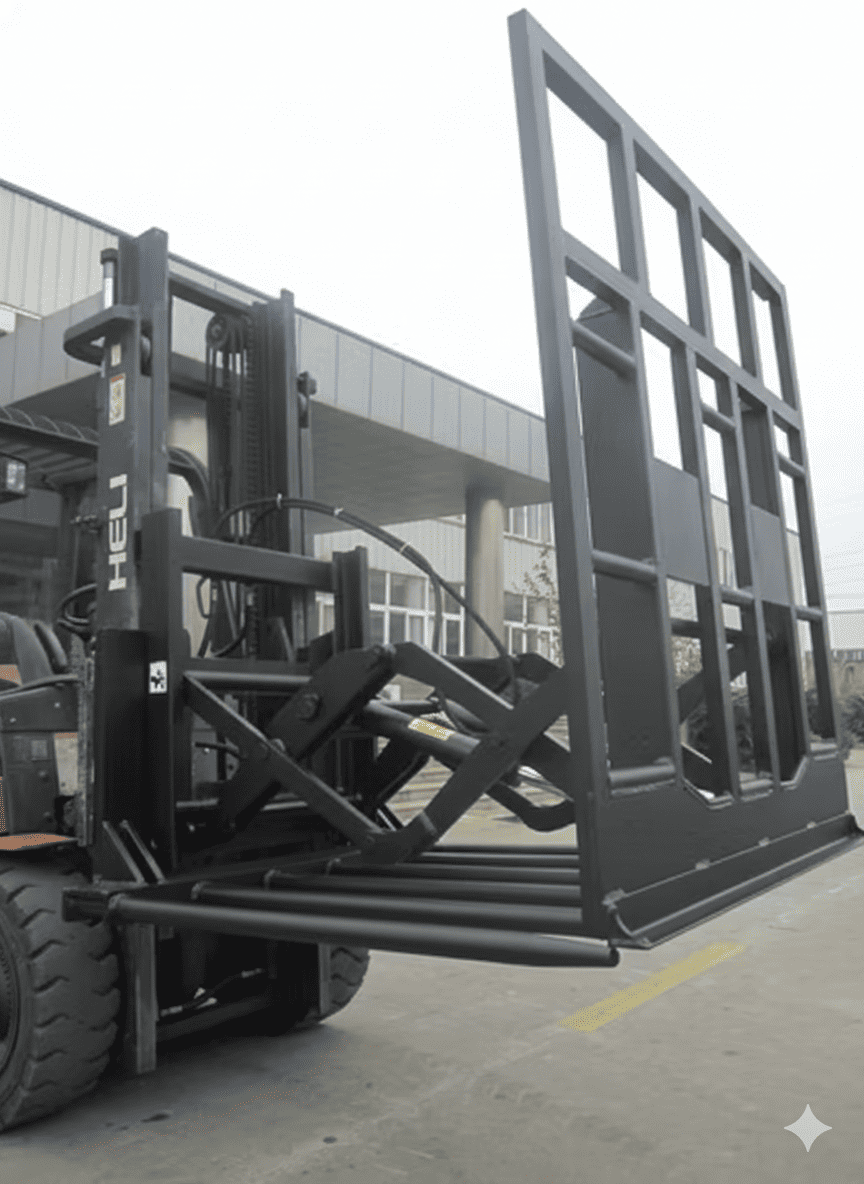

The Heli Integral Fork Plate Push-Pull is a high-performance, integrated material handling system engineered to revolutionize the handling of slip-sheeted loads. Designed as a seamless, factory-grade attachment for forklifts in the 1.0 to 4.5-ton capacity range, it completely eliminates the need for wooden pallets by enabling the direct handling of loads mounted on thin, low-cost plastic, corrugated, or fibreboard slip sheets. This system transforms a standard forklift into an ultra-efficient, high-speed unit load handler, offering dramatic savings in packaging costs, storage space, and transportation weight.Technical Parameters
| Parameter | TL16B-A4 1600kg @ 500mm • Class III |
TL16B-B2 1600kg @ 500mm • Class III |
TL16B-B4 1600kg @ 500mm • Class III |
|---|---|---|---|
| Capacity @ Load Center | 1600 kg @ 500 mm | 1600 kg @ 500 mm | 1600 kg @ 500 mm |
| Mounting Class | III | III | III |
| Push Range (C) | 1230 mm | 1350 mm | 1230 mm |
| Baffle Height x Width (B x A) | 986 × 1014 mm | 1050 × 1014 mm | 1200 × 1200 mm |
| Minimum Truck Carriage Width (E) | 940 mm | 900 mm | 950 mm |
| Effective Thickness (ET) | 305 mm | 305 mm | 305 mm |
| Horizontal Center of Gravity (HCG) | 296 mm | 360 mm | 300 mm |
| Weight | 615 kg | 670 kg | 750 kg |
| Available Forklift | 1-2.5t | 3-4.5t | 3-4.5t |
