3-7t Double-Cylinder Hinged Fork for Tilting

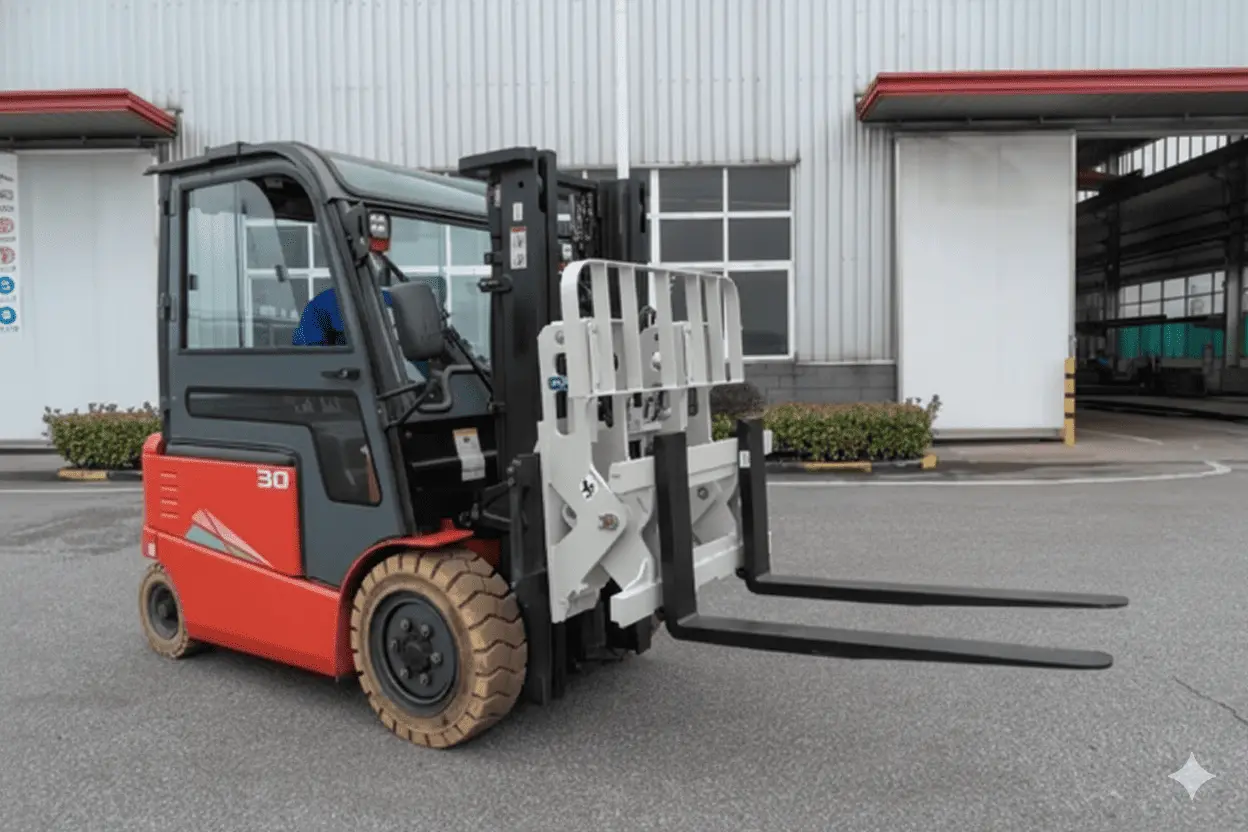

The Heli 3-7t Double-Cylinder Hinged Fork is a heavy-duty, precision-engineered attachment designed to master the demanding task of handling heavy, unbalanced, and irregular loads with supreme control and safety. Engineered for the robust 3 to 7-ton forklift class, this advanced system replaces static forks with a dynamically articulating platform, allowing operators to actively tilt and manipulate loads up to 7,000 kg. Its primary function is to provide controlled forward and backward tilt of the entire fork assembly, enabling precise dumping, levelling, and secure transport of materials that defy conventional handling.Technical Parameters
| Parameter | QF35F-B1-02 3500kg @ 500mm • Class III |
QF45F-B1-01 4500kg @ 600mm • Class III |
QF45F-B2-01 4500kg @ 600mm • Class III |
QF45F-B3-01 4500kg @ 600mm • Class III |
QF50F-C1-01 5000kg @ 600mm • Class IV |
QF50F-C2-01 5000kg @ 600mm • Class IV |
|---|---|---|---|---|---|---|
| Capacity @ Load Center | 3500 kg @ 500 mm | 4500 kg @ 600 mm | 4500 kg @ 600 mm | 4500 kg @ 600 mm | 5000 kg @ 600 mm | 5000 kg @ 600 mm |
| Mounting Class | III | III | III | III | IV | IV |
| The goods fork class | III | III | III | III | III | IV |
| Cylinder number | Double | Double | Double | Double | Double | Double |
| Carringe Width (A) | 1100 mm | 1800 mm | 1126 mm | 1500 mm | 1800 mm | 1785 mm |
| Carringe Height (B) | 506 mm | 506 mm | 506 mm | 506 mm | 506 mm | 634 mm |
| Overall Height | 1172 mm | 1172 mm | 1172 mm | 1172 mm | 1172 mm | 1210 mm |
| Tilt Forward / Tilt Backward | 45° / 25° | 45° / 25° | 45° / 25° | 45° / 25° | 45° / 25° | 45° / 25° |
| Effective Thickness (ET) | 392 mm | 392 mm | 392 mm | 392 mm | 392 mm | 427 mm |
| Horizontal Center of Gravity (HCG) | 165 mm | 193 mm | 132 mm | 190 mm | 193 mm | 210 mm |
| Weight | 360 kg | 680 kg | 510 kg | 670 kg | 690 kg | 785 kg |
| Available Forklift | 3-4.5t | 3-4.5t | 3-4.5t | 3-4.5t | 5-7t | 5-7t |
