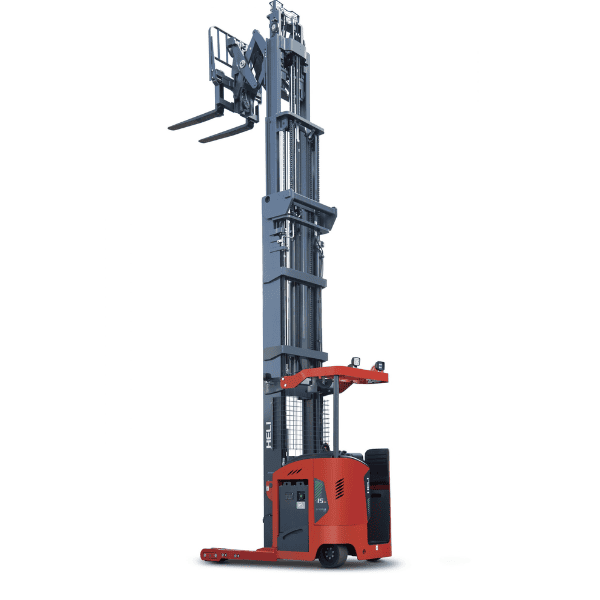

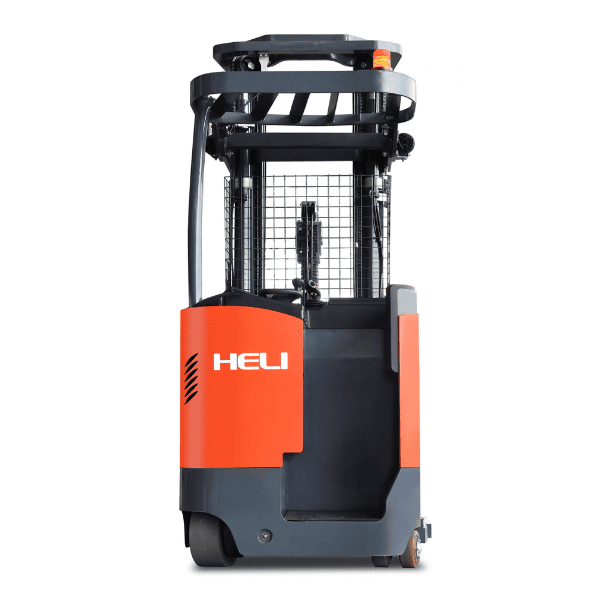

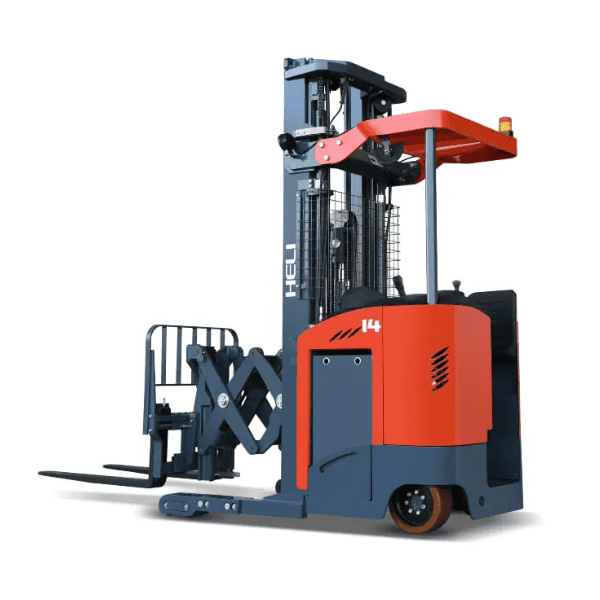

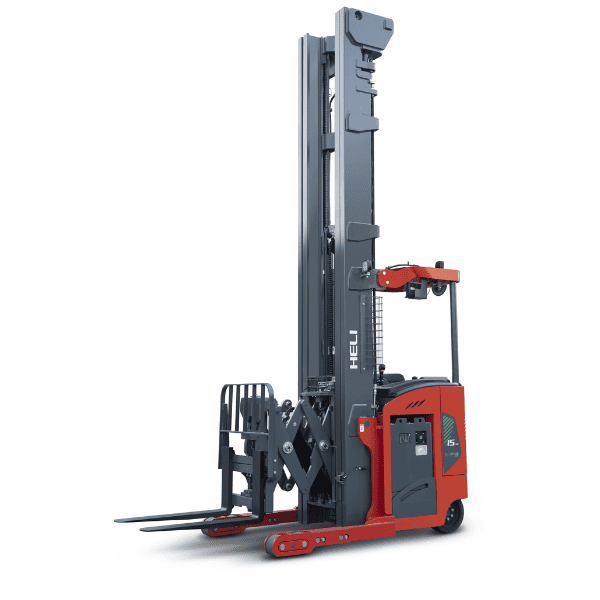

G Series 1.4-1.8 Ton Lithium Battery Stand-On Reach Truck
The Heli G Series 1.4-1.8 Ton Lithium Battery Stand-On Reach Truck is the definitive solution for operators demanding maximum agility, precision, and uptime in high-density storage environments. Engineered as the workhorse of Very Narrow Aisle (VNA) operations, this model excels where space is constrained and operational tempo is relentless.Key Benefits
- The stand-on platform enables operators to enter and exit the truck in under 3 seconds, a critical advantage in high-frequency order picking, case picking, and cycle-counting applications.
- Eliminates all costs for battery watering, acid neutralization, equalization chargers, and periodic lead-acid battery replacement (typically every 18-24 months in multi-shift use).
- Available with factory-prepared packages for freezer applications, including specialized fluids, battery thermal management, and operator comfort options.
- The electronic control system automatically governs travel speed based on lift height and deceleration rates, actively maintaining a safe stability envelope.
- Provides smooth, controlled deceleration while converting braking energy back into battery charge, also reducing wear on mechanical brake components.
- Logs the time and force of impacts to the mast or chassis, helping managers identify training opportunities and prevent minor damage from becoming major repairs.
| Specification | CQD14X2 | CQD16X1 | CQD18X1 |
|---|---|---|---|
|
Capacity & Dimensions
|
|||
| Load Capacity | 1350 kg | 1500 kg | 1800 kg |
| Load Center | 600 mm | 600 mm | 600 mm |
| Min. outside turning radius | 1838/1874/1936 mm | 1695 mm | 1745 mm |
| Reach stroke | 1080 mm | 600 mm | 600 mm |
|
Power System
|
|||
| Battery Voltage | 48 V | 48 V | 48 V |
| Controller | ZAPI | ZAPI | ZAPI |
| Battery | Lithium battery | Lithium battery | Lithium battery |
|
Additional Features
|
|||
| Other | Double scissor Optional: Lead-acid battery |
Optional: Lead-acid battery | Optional: Lead-acid battery |
