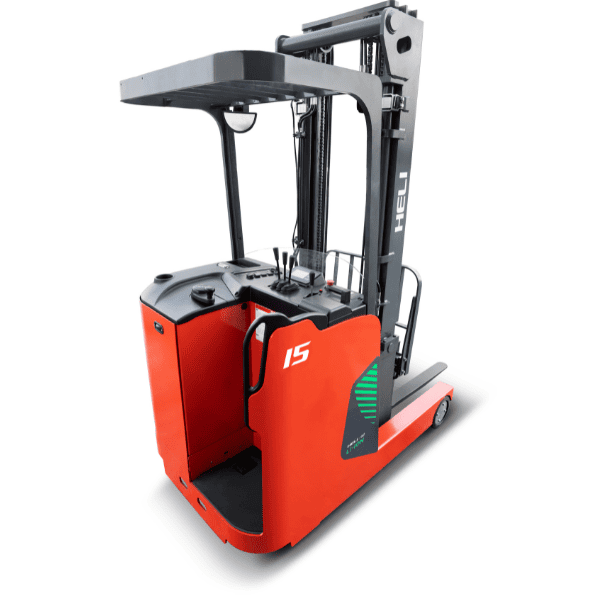

G2 Series 1.5-2.5 Ton Lithium Battery Stand-on Reach Truck
The Heli G2 Series 1.5-2.5 Ton Lithium Battery Stand-on Reach Truck represents the pinnacle of high-density warehouse efficiency, engineered for maximum throughput where space is at a premium and productivity is paramount. This advanced model combines the space-saving agility of a stand-on platform with robust lifting capacity, delivering exceptional performance in very narrow aisle (VNA) environments that require both speed and strength.Key Benefits
- Engineered to operate in aisle widths from 1.8 meters, enabling warehouse operators to increase storage density by up to 40% compared to conventional forklift configurations.
- Multi-function handle integrates travel, lift, reach, and tilt controls within natural thumb reach, reducing operator fatigue during extended shifts.
- Large battery capacity supports 8-10 hours of continuous operation on a single charge, with opportunity charging capability extending to 24/7 operations.
- Sealed electrical components and optional cold storage packages enable reliable operation in temperatures ranging from -30°C to +40°C.
- Electronic stability system automatically monitors and adjusts performance parameters based on load weight, lift height, and travel conditions.
- Zero emissions operation and reduced energy consumption support corporate sustainability goals and regulatory compliance requirements.
| Specification | CQD15 | CQD18 | CQD20 | CQD25 |
|---|---|---|---|---|
|
Capacity & Dimensions
|
||||
| Load Capacity | 1500 kg | 1800 kg | 2000 kg | 2500 kg |
| Load Center | 500 mm | 500 mm | 500 mm | 500 mm |
| Max. lifting height | 6750 mm | 6750 mm | 7400 mm | 7400 mm |
| Min. outside turning radius | 1615/1590 mm | 1775/1730 mm | 1795 mm | 1965 mm |
|
Power System
|
||||
| Battery Voltage | 48/80 V | 48/80 V | 48/80 V | 48/80 V |
| Controller | ZAPI | ZAPI | ZAPI | ZAPI |
| Battery | Lithium battery | Lithium battery | Lithium battery | Lithium battery |
| Other | Optional: Lead-acid battery | Optional: Lead-acid battery | Optional: Lead-acid battery | Optional: Lead-acid battery |
